TP-USB

Optical Probe for Meter Communication

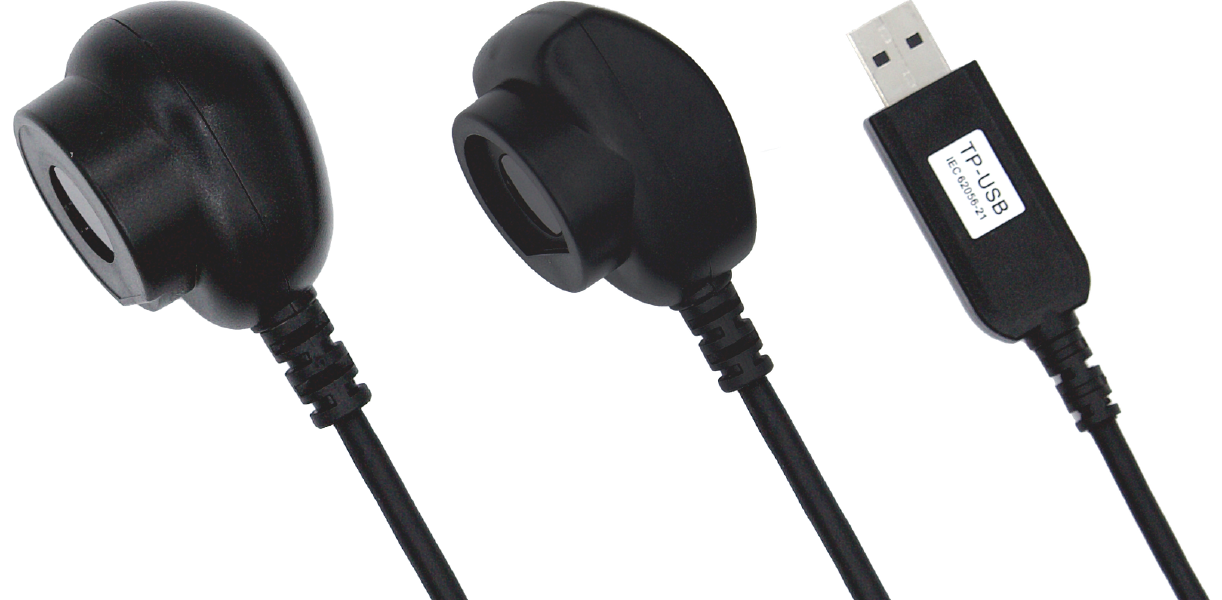

/images/products/tespro/TP-USB.hero.png
  • 15 years of history, sold to more than 100 countries, proven meter compatibilities.
  • Ultrasonic welding ensures a robust housing for the product, enhancing durability and reliability. It remains steadfast even in demanding working environments.
  • Supports transparent mode.
  • Build-in drivers in popular OS, no driver installation required.
  • An infrared (IR) optical filter resists to ambient light without compromising IR sensitivity.
  • Logo and firmware customization available.

Supports Android, Windows, MacOS, Linux

Certifications

Models

What's the different between ansi and iec standard?

Understanding the Differences Between IEC 62056-21 and ANSI C12.18

ANSI STANDARD
 TP-USB-ANSI-N, TP-USB-ANSI-S
 Complied with ANSI C12.18

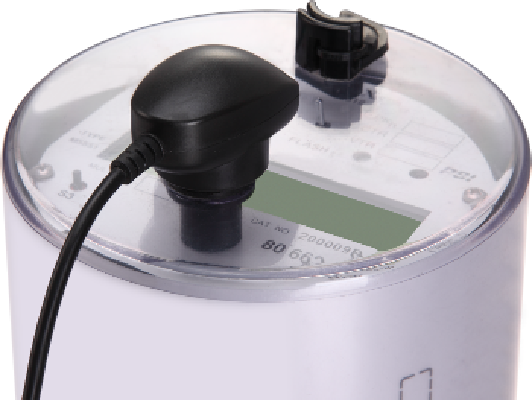

/images/products/tespro/TP-USB-ANSI.app.png
ANSI STANDARD
 TP-USB-IEC
 Complied with IEC 62056-21

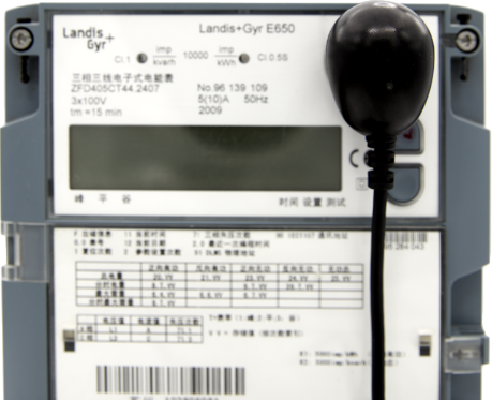

/images/products/tespro/TP-USB-IEC.app.png

Get a Free Sample

With CA$68(US$50) shipping cost, we ship requested free sample world wide.

Tehnical Specifications
Standard IEC 62056-21(IEC 61107)
ANSI C12.18 Type 2
DLMS
Connector USB-A 2.0
Communication Speed 300bps ~ 57,600bps
Magnet Attachment Magnetic Force N4.0
Complied with IEC 62056-21(IEC 61107) or ANSI C12.18
Indicators 1 Indicator with dual display:
LED Red: Transmitting
LED Green: Receiving
Weight 110gr
IR Radiation 940nm
IR Communication Distance 0 ~ 80mm
IR Sensor Wavelength 700~1100nm
Voltage 5V
Cable Length 2 meters (6.5 inch)
Cable extension available
Casing Material Polycarbonate
Water Proof IP54
Operating Temperature -35°C ~ 80°C (-31°F - 176°F)

dimension

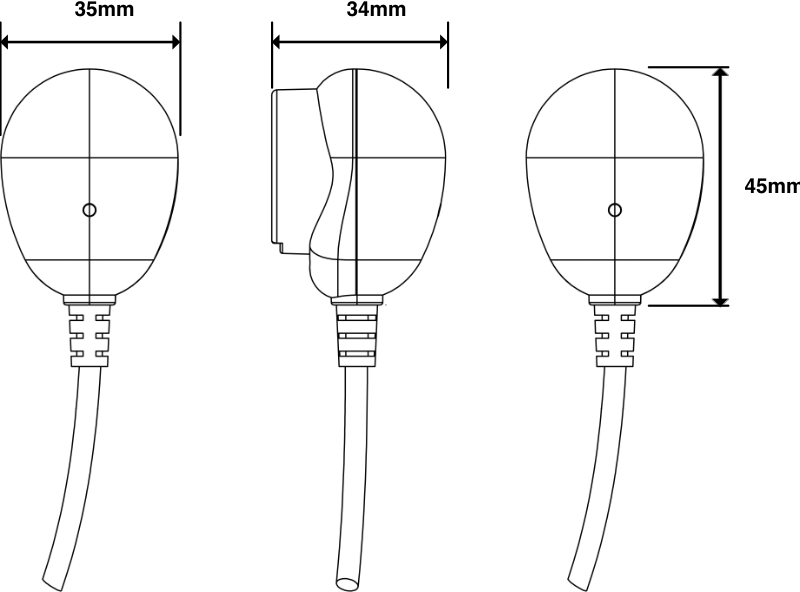

TP-USB-IEC

TP-USB-IEC Dimension

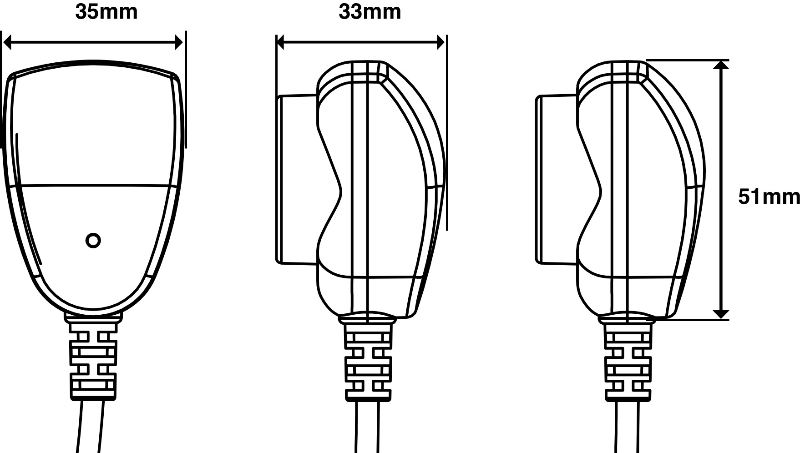

TP-USB-ANSI

TP-USB-ANSI Dimension
