OP-BTS

for Meter Communication

/images/products/tespro/OP-BTS.hero.png

OP-BTS Bluetooth Optical Probe serves as an interface, communicating via infrared waves with utility meters, or any other device equipped with an optical port.

  • Supports transparent mode.
  • Automatically detects baud rate, by support of Mode E & Mode C.
  • High-capacity battery guarantees 100-day in hibernate mode.
  • The infrared optical filter can block ambient light interference without compromising the device’s sensitivity to IR.
  • Switch baud rate on device.
  • Transmission power adjustable.
  • Battery life extended with battery portion feature.
  • Supports bluetooth renaming.
  • Simple firmware upgrade by bluetooth or USB cable.
  • 16Mb build-in memory for data storage.

    Download OP Manager

Bluetooth 5.0
BLE
68 Working Hours
10,000 Meters/single charge
16MB Total Accessible Storage
Flashlight
By double click power button


Support Android, iOS, Windows, MacOS, Linux

Certifications

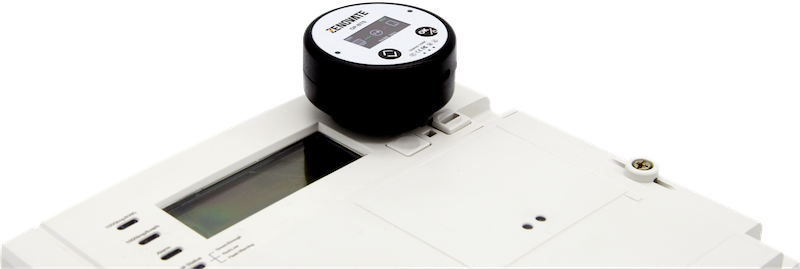

TP-BT-IEC Optical Probe

Water Proof, Dust Proof


Operational from -30° to 80°

Water Proof, Dust Proof, IP67
OP-BTS-IEC Optical Probe

Show connections status

OP-BTS-IEC Optical Probe

Switch Baud Rate

SP-BTS-IEC Optical Probe

Reset Serial Port

OP-BTS-IEC Optical Probe

Adjust Transmission Power

Water Proof, Dust Proof

World's First IP67 Certified Metering Optical Probe


Operational from -30° to 80°

Water Proof, Dust Proof, IP67

Python

OP-BTS-IEC Optical Probe

The OP-BTS is the first stand alone metering optical probes that do not Optical Probe Ever depend on computer or handheld devices. Equipped with a built-in microchip and 16Mb accessible storage, these probes can execute simple tasks through pre-designed Python scripts without handheld device or computer.

Users can easily upload customized scripts to the probes and run them with a simple click of a button.


On Screen Menu

OP-BTS-IEC Optical Probe

Show connections status

OP-BTS-IEC Optical Probe

Switch Baud Rate

SP-BTS-IEC Optical Probe

Reset Serial Port

OP-BTS-IEC Optical Probe

Adjust Transmission Power

OP Manager

OP Manager provides extensive features to OP series bluetooth optical probes, showing up device information and manage device settings.

Most frequently used features:

  • Showing devices information: device serial number, hardware and software versions, Bluetooth UUID, system storage, device temperature etc..
  • Manage device configurations: communication baud rate, bluetooth names, standby and hibernate time, USB mode and reset device to factory settings.
OP-BT Connected OP-BT Connected OP-BT Connected OP-BT Connected OP-BT Connected

Models

What's the different between ansi and iec standard?

Understanding the Differences Between IEC 62056-21 and ANSI C12.18

ANSI STANDARD
 OP-BTS-ANSI
 符合 ANSI C12.18 标准
/images/products/tespro/OP-BTS-ANSI.app.png
ANSI STANDARD
 OP-BTS-IEC
 符合 IEC 62056-21 标准
/images/products/tespro/OP-BTS-IEC.app.png

技术指标
标准 IEC 62056-21(IEC 61107)与DLMS
ANSI C12.18
ANSI C12.18 Type 2
Bluetooth Standard Bluetooth 5.0
BLE+SPP
2.4G
通讯速率 300bps ~ 57,600bps
Default Baud Rate 9600bps, supports IEC dynamic baud rate
Max Communication Rang 10 Meters
磁性连接 磁性引力：N4.0
符合 IEC 62056-21(IEC 61107) 或 ANSI C12.18 标准
指示灯 2 (Power/Battery, Bluetooth Status, RX, TX)
重量 60gr
Battery Li-Po, 3.7V, 1050mAh
Battery Charging 4.5 Hours
2.5 Hours(fast charge)
Standby Hours 72 Hours
Working Hour 68 Hours
Continuous Communication 58 Hours
Hibernate Mode 100 Days
IR Radiation 940nm
红外通讯距离 0 ~ 80mm
红外接收波长 700~1100nm
电压 3.7 ~ 4.2V
Power Adapter AC 85 ~ 220V
DC 5V
电缆长度 1 meters (3 feet 3⅜ inch)
外壳材料 聚碳酸脂
Protection Class IP67
操作温度 -30°C ~ 80°C (-22°F - 176°F)
OS compatibility iOS
Android
Linux
Microsoft Windows
Mac OS X
Windows CE
USB & Driver USB Type-C
2.0 standard
Firmware Upgradable
via bluetooth or USB cable

尺寸

OP-BTS-IEC

OP-BTS-IEC Dimension

OP-BTS-ANSI

OP-BTS-ANSI Dimension
